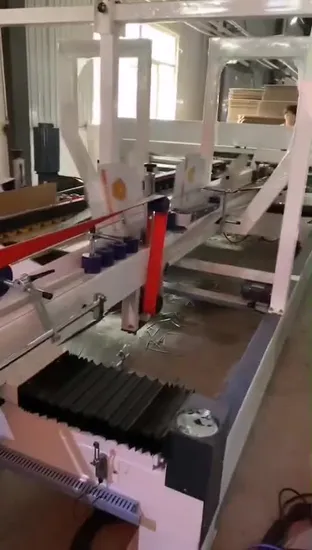

Automatic Corrugated Paperboard Box Folder Gluer Stitcher

Basic Info

Model NO.	QS2600
Certification	ISO9001, TUV, GMP, ISO, CE
Application	Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food
Driven Type	Electric
After-Sales Service Provided	Engineers Available to Service Machinery Overseas
Type	Automatic Carton Making Machine
Automatic Grade	Automatic
Using	Carton Box Making Machine
Usage	Corrugated Box Paperboard Folder Gluer Stitcher
Belonging	Carton Packing Machine
Key Words	Folder Gluer Stitching Machine
Product Name	Carton Box Folder Gluer
Transport Package	Plastic Film
Specification	as customized
Trademark	RICHOCEAN
Origin	Qingdao China
HS Code	8441309000
Production Capacity	20sets/Month

Product Description

Main function description:Full automatic carton stitching folding gluing machine mainly composed of four parts:paper feeding section,foldingsection,stitching gluing pressing section,counting stacking section,digital display speed adjustment,microcomputer amplitude adjustment,with a simple fast reliable and precise control mode.Automatic paper feeding,automatic gluing and folding,automatic counting,automatic stacking output, the average gluing speed is 150 sheets/min,the maximum speed gluing speed is 220 sheets/min,and the stitching box speed is 50 sheets/min.High efficiency, energy saving and environmental protection is our highest pursuit.Main technical parameter:

Machine Model	QS2600
	Gluing	Stitching
The max paper size(A+B)×2	2500mm
The min paper size(A+B)×2	420mm	680mm
The max length of carton A	780mm
The min length of carton A	130mm	210mm
The max width of carton B	580mm
The min width of carton B	80mm	170mm
The max height of paper (C+D+C)	1100mm
The min height of paper (C+D+C)	170mm	300mm
The max size of case cover C	430mm
The min size of case cover C	50mm
The max height D	700mm
The min height D	100mm
The max width of tongue	40mm
The stitching distance	30-150mnm
Number of nails	1-99
Wire specs	1.85*0.75mmWidth*Thickness
Total power	18HP
Stitching head speed	600 times/min

About usWe are professional manufacturer of carton packaging machine with more than 20 years production experience.Our main product has corrugated cardboard production line,carton printing machine,carton stitching machine,foldng gluing machine etc.In the same industry in China, we took the lead get the ISO9001 certification.We also passed SGS and BV certification now. Our products sell well in more than 20 provinces nationwaide and overseas.More about us

Thanks for your visit! More details please contact us freely.
